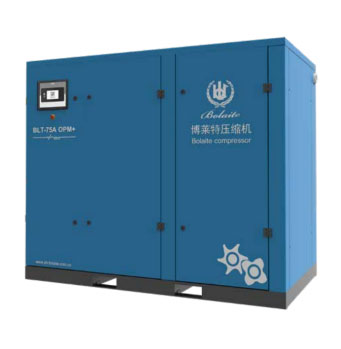

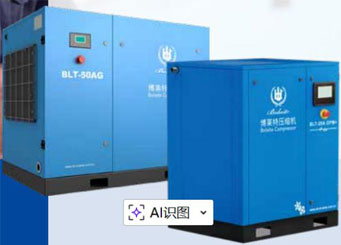

产品介绍Product Introduction

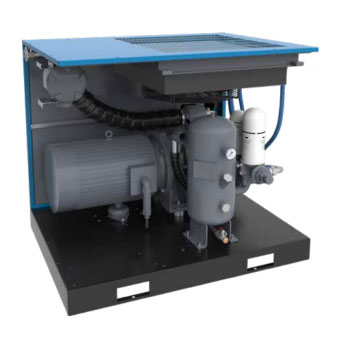

1）优化的整机结构设计Optimized overall machine structure design

获益于集团140余年的历史传承和技术经验，遵循欧洲集团严格的开发流程和及测试标准，针对中国各种复杂气候和恶劣工况特别设计。

Benefiting from the group's over 140 years of historical heritage and technological experience，Following the strict development process and testing standards of the European group, specially designed for various complex climates and harsh working conditions in China.

2）高品质核心部件High-quality core components

-采用世界领先的阿特拉斯·科普柯主机；

-效率高，最佳的螺杆齿顶圆线速度使其与市场上同类产品相比更加节能；

-最先进的SAP专利线型；

-压缩机运动部件加工精度高，冲击、振动小；

-转子使用寿命长，刚度高，不易变形；

-内部泄漏小；

-采用五轴联动转子磨床磨削加工而成；

-转子精度高，表面粗糙度好。齿间间隙小，内部泄漏少；

阿特拉斯·科普柯全球市场占有率遥遥领先所有竞争对手，其世界最高水准的主机确保了空压机整机的优异性能。

- Adopt the world leading Atlas Copco host;

- High efficiency, the optimal screw tooth tip circular linear velocity makes it more energy-efficient compared to similar products on the market;

- The most advanced SAP patented line type;

- The machining accuracy of the moving parts of the compressor is high, and the impact and vibration are small;

- The rotor has a long service life, high rigidity, and is not easily deformed;

- Small internal leakage;

- Made by grinding with a five axis linked rotor grinder;

-The rotor has high precision and good surface roughness. Small interdental clearance and minimal internal leakage;

Atlas Copco's global market share is far ahead of all competitors, and its world's highest level host ensures the excellent performance of the whole air compressor.

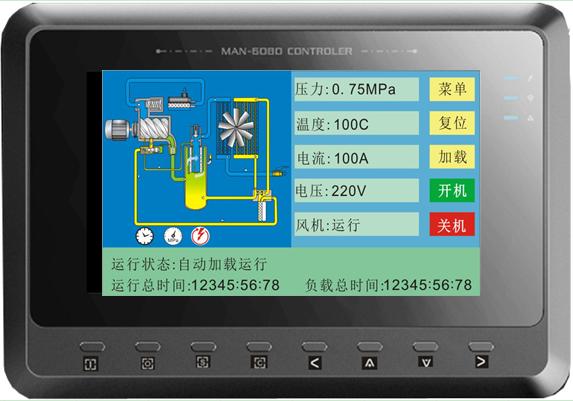

3）智能控制系统Intelligent control system

- 中英文切换控制系统，操作简便，只需简单地按一个按钮，即可启动，投入使用

- 全方位保护功能：防止出现短路、堵转、缺相、过载等造成的故障

- 多台空压机可连锁控制，保证整个空压机系统高效运行

- 多种信号输出，可以和客户的中央控制系统进行数据交换，实现集中控制

-Switching control system between Chinese and English, easy to operate, just press a button to start and put into use

-Comprehensive protection function: prevent faults caused by short circuits, locked rotor, phase loss, overload, etc

-Multiple air compressors can be interlocked and controlled to ensure efficient operation of the entire air compressor system

-Multiple signal outputs can be exchanged with the customer's central control system for centralized control

4）油冷一体化永磁电机Oil cooled integrated permanent magnet motor

-IE4/IE5能效油冷永磁电机，调速范围广，即使在低速时也能达到90%以上的效率

-无需冷却风扇，更低噪音

-特有的防漏设计，杜绝泄漏风险

-环境影响小，确保冷却效果

-螺杆压缩机专用电机的机座号，SKF轴承

-使用环境完全遵照中国标准，对大温差、高温度；

-和多粉尘的环境耐受性好，可靠性高。

-IE4/IE5 energy-efficient oil cooled permanent magnet motors have a wide speed range and can achieve an efficiency of over 90% even at low speeds

-No need for cooling fan, lower noise

-Unique leak proof design eliminates the risk of leakage

-Low environmental impact, ensuring cooling effect

-Machine base number for screw compressor dedicated motor, SKF bearing

-The usage environment fully complies with Chinese standards and is suitable for large temperature differences and high temperatures;

-Good tolerance and high reliability in environments with high levels of dust.

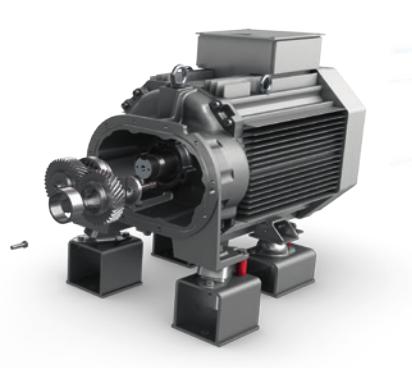

5）高效驱动链 Efficient Drive Chain

-集团研发新型直联驱动，自动对中

-超长寿命

-主机和电机轴直接连接，没有多余中间环节，传动效率100%

-电机尾端有轴承支撑，转子转动时稳定性强，避免“悬臂轴”结构可能引起的扫膛问题

-高磁能积磁钢，规避退磁风险

-The group is developing a new type of direct drive with automatic centering

-Ultra long lifespan

-The host and motor shaft are directly connected without any unnecessary intermediate links, and the transmission efficiency is 100%

-The tail end of the motor is supported by bearings, which provides strong stability when the rotor rotates, avoiding the possible sweeping problems caused by the "cantilever shaft" structure

-High magnetic energy integrated magnetic steel to avoid demagnetization risks

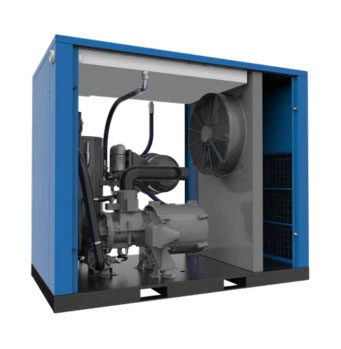

6）高效冷却系统 Efficient cooling system

-采用大尺寸高效冷却器，应对恶劣工况

-采用独立大风扇结合油冷系统，温度更低更稳定

-Adopting large-sized high-efficiency coolers to cope with harsh working conditions

-Adopting an independent large fan combined with an oil cooling system, the temperature is lower and more stable

7）变频器 Frequency converter

-矢量控制变频系统，变频响应速度更快

-专为压缩机的应用特性而定制

-优化的散热系统，确保在更高的环境温度下稳定运行

-专业化布线接口，安全可靠；

-知名品牌高配系列元器件，安全使用得到长期保障。

-Vector control frequency conversion system, with faster frequency response speed

-Customized for the application characteristics of compressors

-Optimized cooling system ensures stable operation at higher ambient temperatures

-Specialized wiring interface, safe and reliable;

-The high-end series components of well-known brands provide long-term guarantee for safe use.

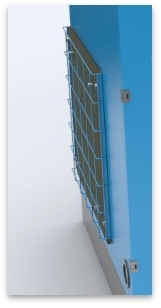

8）预过滤保护Pre filtering protection

独特预过滤网罩设计，保持整机内部清洁，延长维护周期，拆装清理便捷，且可重复使用。

The unique pre filter cover design keeps the interior of the machine clean, extends the maintenance cycle, is easy to disassemble and clean, and can be reused.
