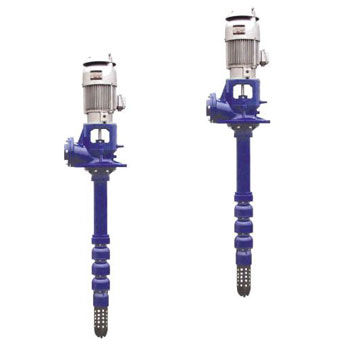

CSG/JCK 型长轴深井泵

CSG/JCK TYPE LINE-SHAFT DEEP WELL PUMP

产品简介

PRODUCTION INTRODUCTION

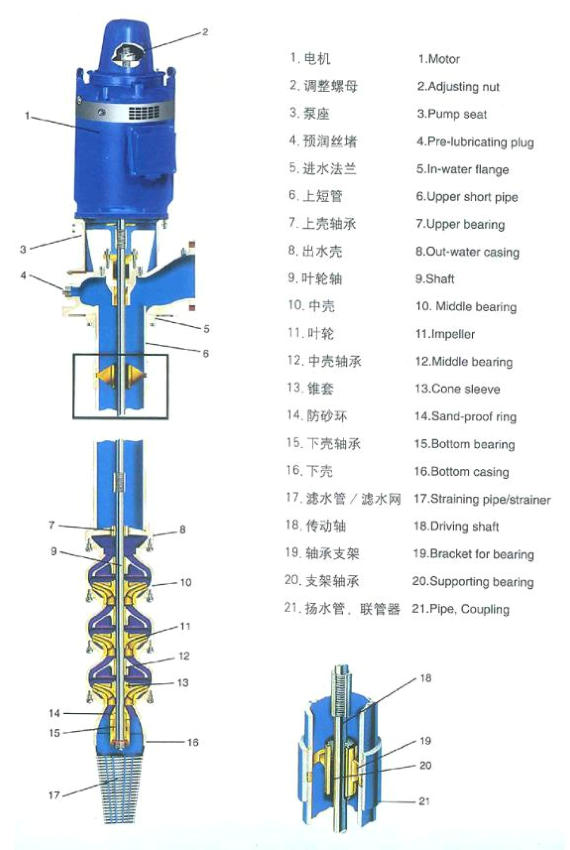

CSG/JCK型系列深井泵结构先进，采用亚什兰树脂工艺制芯，叶轮、导流壳流道部位使用环氧涂复新工艺、水力模型先进、性能曲线无驼峰、高效区域宽广，采用甩沙式防沙环，迷宫结构,使沙子无法进入轴承，传动轴采用先进的热校直工艺，是新一代节能型提水机具。

流量:≤2500m/h

扬程:≤350m

电机功率:5.5-710KW

额定电压:380V.6KV,10KV

井径:100-750mm

最大排出口径:450mm

CSG/JCK

series deep well pumps are new generation and energy-saving equipment for lifting water.They are with advanced structure, for they adopting the core produced with the resin sand and the mpeller&diffuser adopting the new technique that top coated with epoxy, advanced hydraulic odel, excellent erformance curve without hump and wide high efficiency range. They use whirl and device and the maze-like structure which makes sand not able to enter the bearings. Shaft is

checked by flame method to ensure it is in line.

Capacity:≤2500m/h

Head: ≤350m

Motor Power: 5.5-710KW

Rated Voltage: 380V,6KV,10KV

Well Diameter:100-750mm

Max Discharge Diameter:450mm

应用范围

USEAGE RANGE

CSG/JCK型长轴深井泵适用于从水井中提取常温无腐蚀性的清水，广泛应用于水电站(检修、渗漏排水用泵)，火电厂(循环降温，生活用泵)，钢厂(铁皮坑用泵)，消防，城镇水厂供水及农田灌溉。

CSG/JCK

series deep well pumps are applied to lift normal temperature clean water without crosive for water power plant(in an overhaul and leakage), power plant(when reduce the temperature in the recycle, and for domestic service), steel works(for scale pit), fire-fighting, urban water supply by water plant and agriculture irrigation.

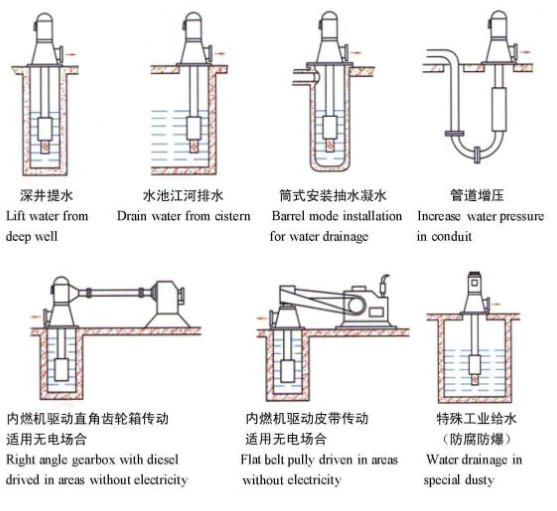

安装使用方式

INSTALLATION METHOD

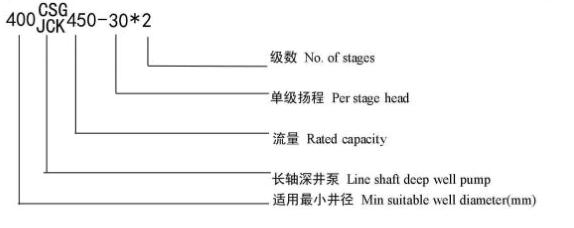

型号说明

MODEL MEANING
