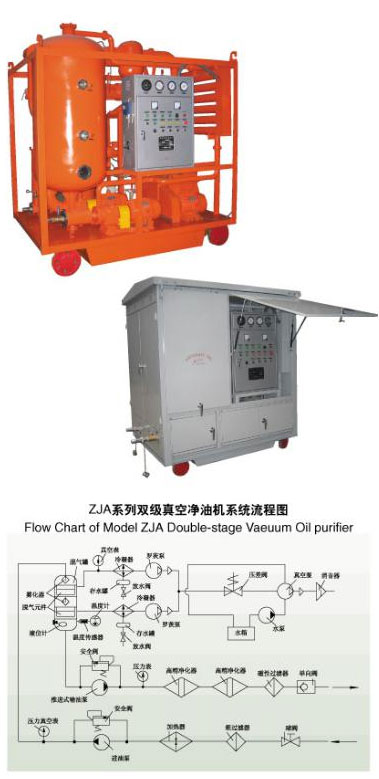

ZJA系列双级高真空净油机
MODEL ZJA DOUBLE-STAGE VACUUM OIL FILTER

主要适用于净化500kV及750kV以上输变电设备用绝缘油，亦可适用于500kV以下输变电设备用绝缘油及各种电器设备用绝缘油的净化处理。

This product is applicable to purifying transformer oil of above 500KV or below 750KVtransformers as well as purifying insulation oils of various electric apparatus.

主要特征和优点

• 利用世界上最先进的“油膜拉张渗透法”原理，能高效地脱除绝缘油中的水分、气体和机械杂质。

• 高低油位自动保护、红外线探测自动消泡，高效灭泡、自动恒温，自动化程度高，操作灵敏可靠

• 机械杂质的过滤为四级过滤,一级粗过滤，两级精过滤，一级磁性过滤，最高过滤精度达到1μm，油净化清洁度达到NAS16384级。

• 真空系统采用真空泵油自动循环过滤装置及高效换热装置，使真空系统的运行更加可靠。

• 进出油泵采用目前世界上最先进的TYB型高吸程专用输油泵，噪音低，

• 四川省环保认证产品

• 质量权威检测连续合格达标品牌产品

• 国家电力公司推荐产品

MAIN FEATURES AND MERITS

• Intemational updated“Oil Film Tension Osmosis Process”technique is used so that water, gas and impurities can be effectively remnoved,

• High/ low oil level automatic protection, automatic foam-removing, high-effective needle foam-extinction are available.
  The article is of automation, automatic constant temperature maintaining and easy operation.

• The machine has four filter stages for mechanicul impurities: one coarse filtering. two fine filtering and one magnetic filtering. The highest fineness reaches to I um and cleanness of oil purified reacbes to NAS 1638 class 4.

• Vacuum system consists of spinning vacuum pump and Roots Vacuum Pump. Automatic circulation of filter unit of vacuum pump and effective heat-exchanger make vacuum systcm work more reliably,

• Most advanced Model TYBhigh-lift oil pumps are used as inlet/ outlet pumps. So, low noise is ensured.

• Environmenfal protcction Product of Sichuan Province.

• Constant Gualified product.

• Quality Product recommended by the national power ministry.

主要性能指标

• 待净化油指标:

• 含水≤50mg/kg，含气≤12%，击穿电压≥30kV，经本机数次净化处理后可达下列指标:

• 残余水份≤3mg/kg

• 残余气体≤0.1%

• 击穿电压≥75kV

• 公称过滤精度≤3μm

• 净化清洁度NAS 16384级该机除能达到上述指标外，还具备:

• 酸值{<}0.02mgKOH/g

• 油的氧化产物脱除率达到99.9%以上

MAIN PERFORMANCE INDEX

Index for oil to be treated:

Water ≤ 50mg/kg, gas{<}12%, breakdown voltage {>}30KV.  Indextreated by the machine several times can amount to followings:

• Residual water ≤ 3mg/kg

• Residual gas {<}0.1%

• Breakdown voltage≥ 75kv

• Nominal filter fineness ≤ 3um

• Purified cleanness: NAS 1638 class 4

• Acid value ≤0.02 mg KOH/g

• Oxide removing efficiency: more than 99.9%

选购附件

• KJ/KJA型快速/自封快速活接头

• 透明钢丝耐油胶管

• SS-C蜂房高精滤芯

ATTACHMENT

• Model KI/KJA quick/ sclf-scaling adapter

• Transparent wire oil-proof rubber tube

• SS-C honeycomb fine filter core
